Key Features

• High-precision 5-second angular accuracy for professional surveying and construction work
• Integrated laser plummet for fast and accurate centering over survey points
• Dual LCD digital displays for easy angle reading from both sides
• Advanced absolute encoding angle measurement system
• Automatic vertical compensation with ±3′ tilt correction range
• Powerful 30x telescope magnification for clear long-distance targeting
• Water-resistant sealed construction with IP54 protection
• Coaxial tangent and clamp screws for smooth alignment control
• Automatic power shut-off to extend battery life
• Rechargeable Ni-MH battery pack and AA battery compatibility
• Lightweight compact design for efficient field portability
• Ideal for construction layout, engineering alignment, surveying, and infrastructure projects

Product Description

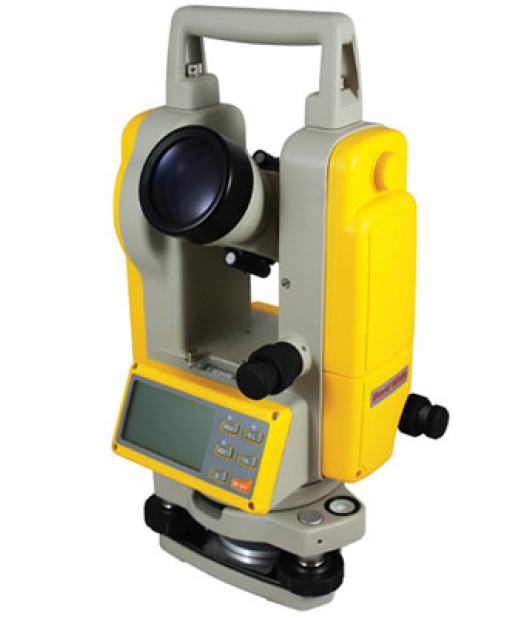

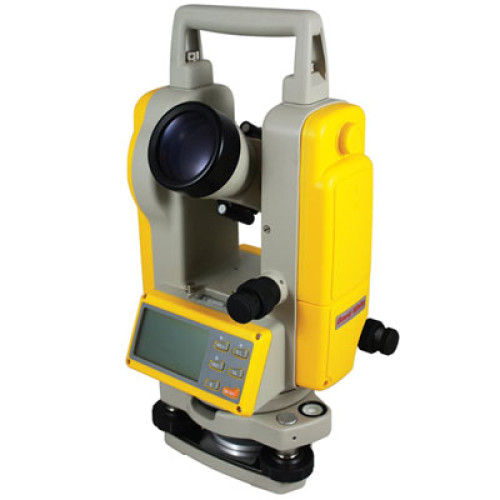

The David White DT8-05LP 5-Second Digital Theodolite with Laser Plummet (46-D8896) is a professional electronic surveying instrument engineered for accurate angle measurements and efficient field setup in construction, engineering, and land surveying applications. Featuring precise 5-second angular accuracy and an integrated laser plummet, the DT8-05LP enables fast centering and reliable alignment for demanding job site conditions.

Designed with dual LCD digital displays and advanced absolute encoding technology, the instrument provides stable and easy-to-read horizontal and vertical angle measurements. Its automatic tilt compensation system helps improve measurement reliability by correcting minor instrument deviations, while the powerful 30x telescope delivers sharp target acquisition for long-distance observations.

The rugged IP54-rated sealed construction protects against dust and water splashes, making the DT8-05LP suitable for harsh outdoor environments. Coaxial tangent and clamp screws allow smooth sighting and alignment adjustments, while the detachable rechargeable battery pack ensures convenient field operation. Whether used for construction layout, roadwork, structural alignment, or general surveying, the David White DT8-05LP delivers dependable performance and professional accuracy.

Specifications

• Model: DT8-05LP
• Part Number: 46-D8896
• Brand: David White
• Type: Digital Electronic Theodolite with Laser Plummet
• Angular Accuracy: 5 Seconds
• Minimum Reading: 1″ / 5″
• Angle Measurement System: Absolute Encoding
• Telescope Magnification: 30x
• Objective Lens Diameter: 45mm
• Image: Erect
• Field of View: 1°30′
• Resolution: 3″
• Minimum Focus Distance: 1.3m
• Stadia Constant: 100
• Display: Dual LCD Displays
• Units of Measurement: Degree / Mil / Gon / V%
• Tilt Compensation: Automatic
• Compensation Range: ±3′
• Plate Vial Sensitivity: 30″ / 2mm
• Circular Vial Sensitivity: 8′ / 2mm
• Laser Plummet: Included
• Waterproof Rating: IP54
• Power Supply: 4 × AA Batteries or Rechargeable Ni-MH Battery Pack
• Operating Temperature: -20°C to 50°C
• Weight: Approx. 4.6kg
• Applications: Construction Layout, Engineering Alignment, Surveying, Infrastructure Projects

What’s Included

• David White DT8-05LP Digital Theodolite
• Rechargeable Battery Pack & Charger
• Alkaline Battery Tray
• Hard Carrying Case
• Sunshade
• Rain Cover
• Plumb Bob
• Tool Kit
• User Manual
