Key Features

• Single-frequency underground pipe and cable locator
• High-frequency 480 kHz locating capability for difficult conductors
• Designed for locating buried pipes, cables, tracer wires, and utilities
• Supports inductive, conductive, and signal clamp locating modes
• Ideal for difficult-to-locate underground utilities and weak tracer wires
• Audible and visual signal response for accurate utility tracing
• Rugged field-ready design for demanding jobsite environments
• Lightweight portable system for convenient field operation
• Suitable for utility contractors, municipalities, and damage prevention crews
• Helps improve excavation safety and reduce utility strikes

Product Description

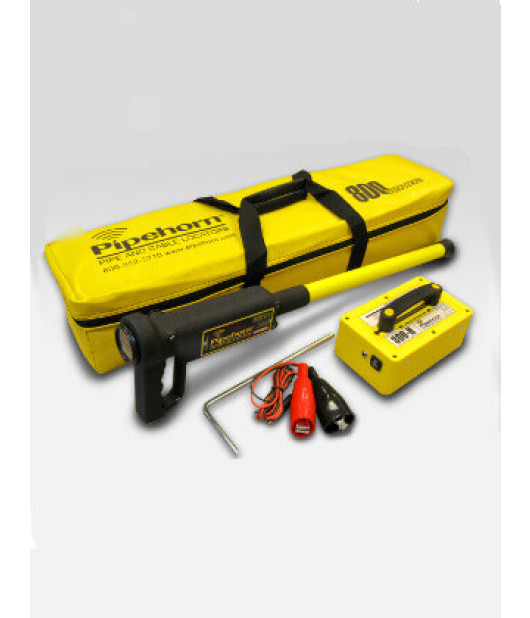

The Pipehorn 800H Single-Frequency Pipe & Cable Locator MD820 is a professional underground utility locating system engineered to accurately trace buried pipes, cables, tracer wires, and conductive utility lines. Featuring Pipehorn’s powerful 480 kHz high-frequency technology, the 800H is designed to locate utilities that are often difficult to detect using standard locating equipment.

Ideal for contractors, utility locating professionals, municipalities, and damage prevention crews, the Pipehorn 800H performs especially well on coated iron pipes, worn tracer wires, unenergized power lines, fiber, and short service lines. The locator supports inductive, conductive, and signal clamp locating methods for flexible field applications.

With its durable construction, easy-to-use controls, and fast-response visual and audio feedback, the Pipehorn 800H helps improve underground utility locating efficiency and excavation safety in challenging jobsite conditions.

Specifications

• Brand: Pipehorn
• Model: 800H
• Manufacturer Part Number: MD820
• Product Type: Pipe & Cable Locator
• Frequency: 480 kHz High Frequency
• Locator Type: Single-Frequency Locator
• Modes: Inductive, Conductive, Signal Clamp
• Application: Underground utility locating
• Detectable Utilities: Pipes, cables, tracer wire, fiber optics, utility lines
• Receiver Output: Audible speaker and visual fast-response meter
• Receiver Sensitivity: Smart Control (semi-automatic)
• Transmitter Batteries: Eight C Alkaline batteries
• Receiver Batteries: Two 9V Alkaline batteries
• Transmitter Weight: 3.3 lbs
• Receiver Weight: 3.4 lbs
• Warranty: 3 Years

What’s Included

• Pipehorn 800H Receiver
• High-Frequency Transmitter
• Conductive cable set
• Ground rod
• Quick guide
• Instruction manual
• Vinyl carrying case
